Crestron TSW-770-MSMK-W-S
Monteringssett - for berøringsskjerm - plastikk - glatthvit - overflatemonterbar - for Touch Screen TSW-770-B-S, TSW-770-W-S
Ikke på lager
Produsent
Crestron Electronics
Artnr
TSW-770-MSMK-W-S
- Kontakt oss for pris Eks mva
-
Informasjon

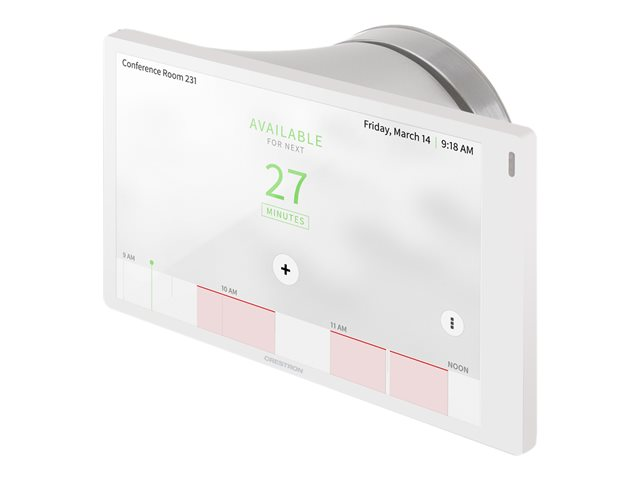

- Permits flush mounting a TSW-770 or TSS-770 series touch screen to virtually any flat, smooth surface
- Ideal for mounting at the entrance to a meeting space for room scheduling applications
- Supports glass surface and partition mounting
- Secure, screwless installation using the peel-and-stick adhesive rear housing
- Provides an assortment of raceway to conceal wiring
The TSW-770-MSMK attaches securely to a flat, smooth surface without screws using the included peel-and-stick adhesive rear housing. For a finished appearance when mounted to a transparent glass wall, an adhesive molded plastic cap is provided, which simply affixes to the opposite side of the glass behind the unit. Templates are provided for the MSMK and the plastic cap to help ensure that both are level and properly aligned with the surface.
The TSW-770-MSMK comes complete with a self-adhering plastic raceway for use on smooth surfaces, which conceals cables running to the touch screen from the floor, ceiling, or an adjacent wall, pillar, or mullion. The raceway is paintable and is composed of three 3 feet (0.91 m) sections, as well as an assortment of elbows and couplings.

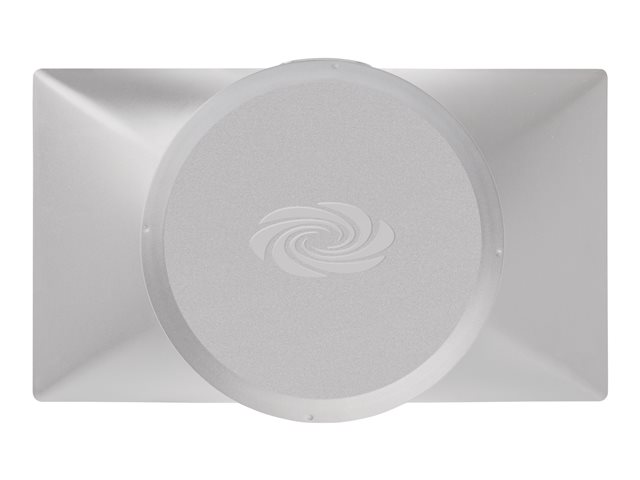

The TSW-770-MSMK rear housing provides four cutout holes (on the top, bottom, and sides of the housing) for running concealed cables to the touch screen using the included adhesive-backed raceway. A plastic cover with an opening for the raceway is attached to the rear housing to conceal any unused cutouts.
-
