Crestron - Monteringssett (vinklet monteringsbøyle, brakett, 2 frontplater, klebepute)

flerflate - for berøringsskjerm - plastikk - glattsvart - overflatemonterbar, glassmontert, monteres i vegg - for Crestron TSW-1070, 770/1070; Room Scheduling Touch Screen TSS-1070, 770; TSS-770 Series
Ikke på lager
Produsent Crestron Electronics
Artnr TSW-770/1070-MSMK-ANG-B-S
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Multisurface design for versatile placement options
    • 20° tilt for optimal viewing angles
    • Integrated cable management for a tidy setup
    • Includes all necessary mounting hardware for immediate installation

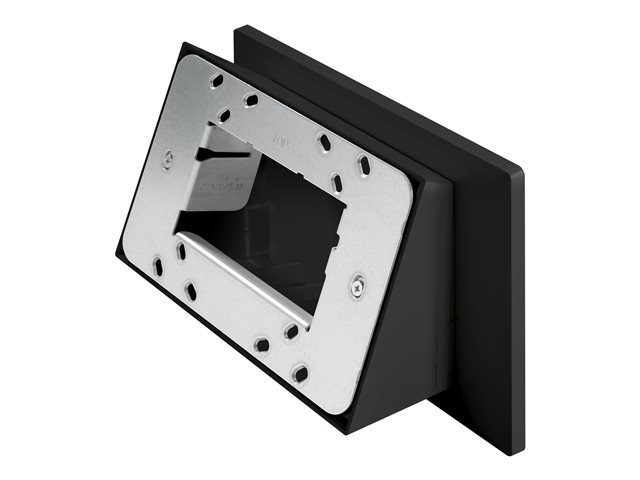

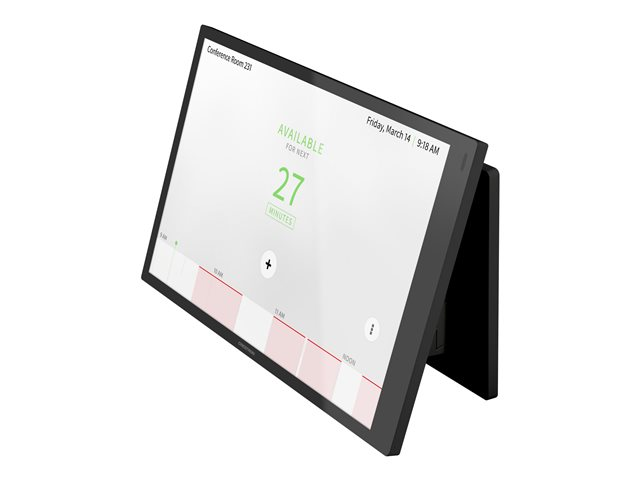

    The TSW-770/1070-MSMK-ANG multi-surface mount kit provides a versatile mounting solution for a TSW-770, TSS-770, TSW-1070, or TSS-1070 touch screen. Using the kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. The touch screen can also be mounted into wall or supported electrical boxes. The TSW-770/1070-MSMK-ANG is ideal for mounting near the entrance to a meeting space for room scheduling applications. When installed, the touch screen is angled upwards at a 20° tilt.

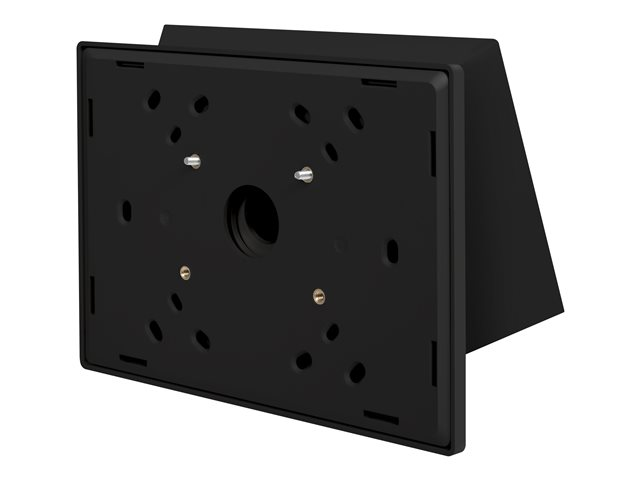

    The TAA compliant TSW-770/1070-MSMK-ANG attaches securely to a flat, smooth surface without screws using the included peel-and-stick adhesive pad or attaches to a wall or an electrical box using the screws provided. For a finished appearance when mounted to a transparent glass wall, a cosmetic label is provided, which affixes to the opposing side of the glass behind the unit. Cables may be run through the back of the unit (wall mount only) or through one of the raceway knockouts located on the bottom or either side of the unit.
  • Spesifikasjon
  • Nedlastbare filer
