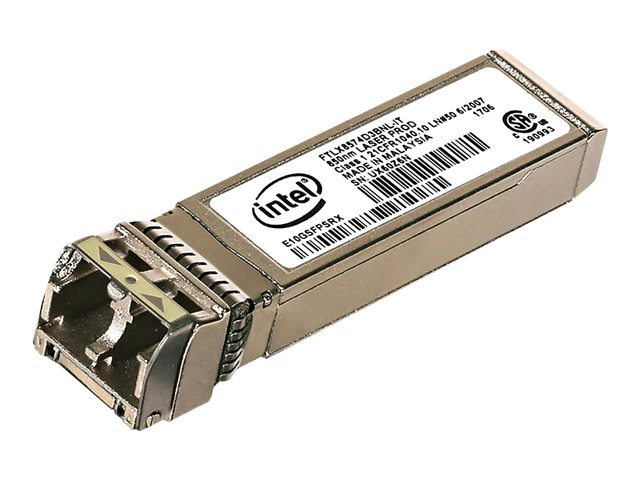

Intel Ethernet SFP+ SR Optics

SFP+ transceivermodul - 10GbE - 1000Base-SX, 10GBase-SR - LC - 850 nm - for P/N: X520DA1OCPG2P5, X520DA2OCPG2P5, X710DA2OCP1
Ikke på lager
Produsent Intel
Artnr E10GSFPSRX
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Hot-pluggable SFP+ footprint
    • RoHS-6 compliant (lead-free)
    • Single 3.3 V DC power supply
    • Uncooled 850 nm VCSEL laser (SR)
    • Receiver limiting electrical interface
    • Duplex LC connector
    • Built-in digital diagnostic functions
    Intel's family of Intel Ethernet X520 Server Adapters with SFP+ connectivity are the most flexible and scalable Ethernet adapters for today's demanding data center environments. The escalating deployments of servers with multi-core processors and demanding applications such as high performance computing (HPC), database clusters, and video-on-demand are the types of applications driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

    Powered by Intel's 10 GbE network controller, the Intel Ethernet 82599 10 Gigabit Ethernet Controller, the X520 server adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance. To ensure maximum flexibility, Intel supports the ability to mix any combination of the SFP+ optical modules, direct attach copper cables, or 1000BASE-T SFP modules on the Intel Ethernet X520 Adapters. For instance, customers can remove the optical modules that come installed on the adapter and replace them with an Intel Ethernet SFP+ Optic, an SFP+ direct attach copper cable, or a 1000BASE-T SFP module. This enables customers to create the configuration that best meets the needs of their data center environment.
