Broadcom NetXtreme E-Series N210P

Nettverksadapter - OCP 3.0 - 1Gb Ethernet / 10Gb Ethernet SFP+ x 2
Ikke på lager
Produsent Brocade
Artnr BCM957412N4120C
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Dual-port pluggable media interface, which can connect to a 10G SFP+ optical transceiver or a copper direct attach cable
    • Fully compliant with the SFF-8402 standard
    • X8 PCI Express 3.0 compliant
    • SR-IOV with up to 128 virtual functions (VFs)
    • Function-Level Reset (FLR) support
    • TruFlow flow processing engine
    • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
    • VSwitch Acceleration
    • Tunnel-aware stateless offloads
    • DCB support - PFC, ETS, QCN, DCBx
    • RDMA over Converged Ethernet (RoCE)
    • Network Controller Sideband Interface (NC-SI)
    • SMBus 2.0
    • MCTP over SMBus
    • PCIe-based UART and KCS
    • Jumbo frames up to 9 KB
    • Advanced congestion avoidance
    • Multiqueue, NetQueue, and VMQ
    • IPv4 and IPv6 offloads
    • TCP, UDP, and IP checksum offloads
    • Large send offload (LSO)
    • Large receive offload (LRO)
    • TCP segmentation offload (TSO)
    • Receive-side scaling (RSS)
    • Transmit-side scaling (TSS)
    • VLAN insertion/removal
    • Interrupt coalescing
    • Network boot - PXE, UEFI
    • ISCSI boot
    • Wake-on-LAN (WOL)
    • MSI and MSI-X
    • Conforms to the OCP 3.0 Design Specification Version 1.00

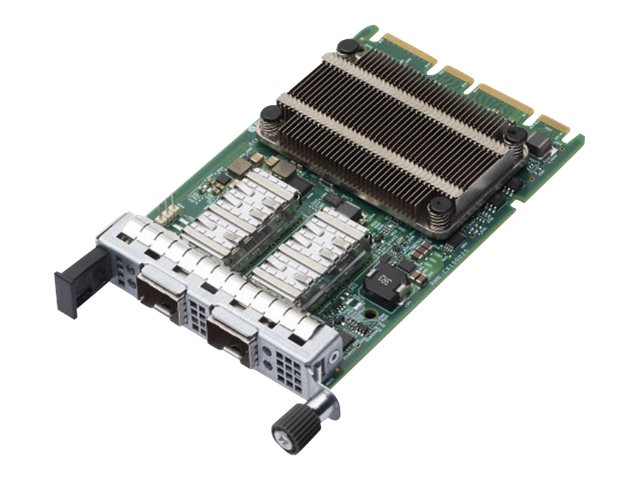

    The Broadcom BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper direct attach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.
